Custom Size Single Hinged Steel Door

Premium Custom Steel Doors – Designed to Fit, Built to Last

We provide the perfect door solutions for those seeking handcrafted, high-efficiency steel frames with the durability and design flexibility to bring custom visions to life. Whether you're creating a statement entrance or a minimalist partition, our steel doors are tailored to fit your space, style, and needs.

Thanks to the exceptional quality of materials and impeccable craftsmanship, each steel door we build is adaptable to an unlimited number of layouts, dimensions, and architectural styles.

Key Features

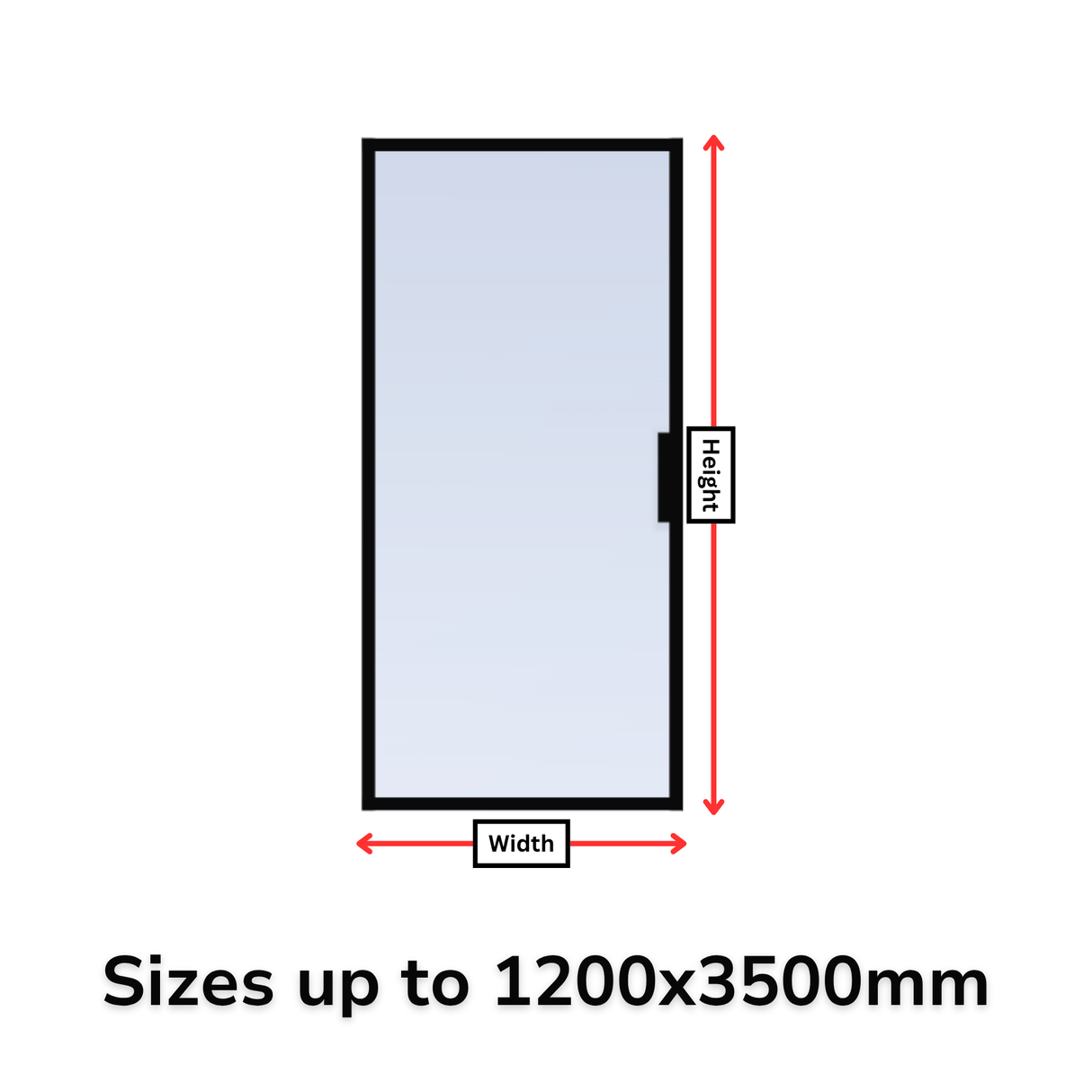

• Fully customisable dimensions
• Glazing options: 4–8 mm toughened, laminated safety, or ornamental glass
• Certified high-quality steel and aluminium frame construction
• Powder-coated finish in a range of available RAL colours
• Choice of matte, satin, or textured finish
• Custom bar layouts and glazing patterns
• Selection of pull handles and lock cassettes
• Suitable for interior or exterior use
• Designed for strength, stability, and smooth operation

1. Slim Steel Door Frame Specification:

• Profile Dimensions: 20 x 40 mm slim steel profiles
• Material: Certified high-quality steel with aluminium reinforcements
• Glazing Compatibility: Supports 4–8 mm glass (toughened, laminated safety, or ornamental)
• Coating: Powder-coated in RAL colours
• Available Finishes: Matte, satin, or pearl finish
• Hardware: Supplied with premium hinges, lock options, and compatible accessories
• Opening Compatibility: Suitable for hinged, sliding, pivot, folding, arched doors, and fixed panels
• Customisation: Fully made to measure – custom dimensions, glazing styles, bar layouts, handles, and lock cassettes
• Application: Suitable for interior and exterior door installations

2. Pro Steel Door Frame Specification

• Profile Dimensions: 34 mm robust, slim steel profiles
• Material: Certified quality steel with certified aluminium reinforcements
• Glazing Compatibility: Supports 4–8 mm thick glass, including toughened, laminated safety, and ornamental options
• Coating: Powder-coated in RAL colours
• Available Finishes: Matte, satin, or pearl finish
• Hardware: Supplied with premium hinges, sliding tracks, pivot kits, and optional accessories
• Opening Compatibility: Suitable for hinged, sliding, pivot, folding, arched doors, and fixed panels
• Customisation: Fully made to measure – including custom dimensions, glazing styles, bar layouts, pull handles, and integrated lock cassettes
• Application: Ideal for interior and exterior use in both residential and commercial settings

3. Lite Steel Door Frame Specification

• Profile Dimensions: 20 mm slender steel framework
• Material: Certified steel frame with welded mullions and glazing beads
• Design: Industrial-style framework with prominent horizontal and vertical bands
• Glazing Compatibility: Supports single-glazed partitions (lower acoustic performance)

• Coating: Powder-coated in RAL colours
• Available Finishes: Matte, satin, or pearl finish

• Hardware: Supplied with suitable hinges, locks, and compatible accessories depending on the configuration
• Opening Compatibility: Suitable for hinged, sliding, pivot, folding, arched doors, and fixed panels
• Customisation: Fully made to measure – adaptable layouts, bar designs, and glazing options available
• Application: Ideal for corporate office dividers where sound insulation is not a priority, domestic room partitions for an industrial aesthetic, and creating open-plan spaces with a loft-style feel

Our steel doors are powder-coated for a high-quality, long-lasting finish. The following RAL and custom colours are available in satin, structure, or pearl finishes, depending on the selection:

Available Standard Colours:

• RAL9005 Jet Black (Satin or Structure)
• RAL9003 Signal White (Satin)
• C4 Dark Gold (Satin)
• C32 Bright Bronze (Satin)
• RAL7021 Black Grey (Satin)
• C34 Dark Bronze (Satin)
• RAL7016 Anthracite Grey (Satin)
• C31 Light Bronze (Satin)
• RAL1035 Pearl Beige (Pearl)
• RAL7022 Umbra Grey (Satin)
• RAL1013 Oyster White (Satin)

Choose from a curated selection of high-quality glass types to suit your preferred aesthetic, safety level, and design intent:

• Laminated Safety Glass
  Made by bonding two 6mm glass panes with a PVB interlayer, this glass provides a total thickness of approx. 13mm. It offers enhanced safety, as the inner layer keeps glass fragments in place upon breakage. Excellent for acoustic insulation, security, and impact resistance.
• Toughened Glass (Tempered)
  Heat-treated for superior strength, this glass is available in 6mm and 8mm options. If broken, it crumbles into blunt-edged pieces to reduce injury risk. Ideal for doors, partitions, and other high-traffic or safety-sensitive areas.
• Estriado Glass – Toughened
  This ribbed/textured glass is tempered for increased durability and safety. It combines visual interest with resilience, making it suitable for both decorative and functional applications.
• Estriado Glass – Non-Toughened
  Offers the same ribbed appearance as the toughened version but without heat treatment. Recommended for low-risk, purely decorative installations.
• Fluted Glass – Toughened
  A vertically lined design with added strength from thermal treatment. Fluted toughened glass provides privacy, style, and safety in one - suitable for doors, dividers, and busy environments.
• Fluted Glass – Non-Toughened
  Shares the same elegant fluted pattern but is not heat-treated. Best used in low-impact or non-hazardous settings where safety is not a primary concern.
• Antisol Bronze Glass – Toughened
  A bronze-tinted glass treated for strength and impact resistance. It offers both safety and warm, rich tones — perfect for stylish yet secure applications.
• Antisol Bronze Glass – Non-Toughened
  Retains the same elegant bronze tint, but is untreated. Ideal for decorative or low-risk settings where safety is not a critical requirement.
• Antisol Graphite Glass – Toughened
  Combines a dark, sleek graphite appearance with the strength of tempered glass. Excellent for modern interiors where aesthetics and durability are equally important.
• Antisol Graphite Glass – Non-Toughened
  Provides the same bold look as the toughened version without the added durability. Best suited for accent features or less exposed areas.

-
